MangDang

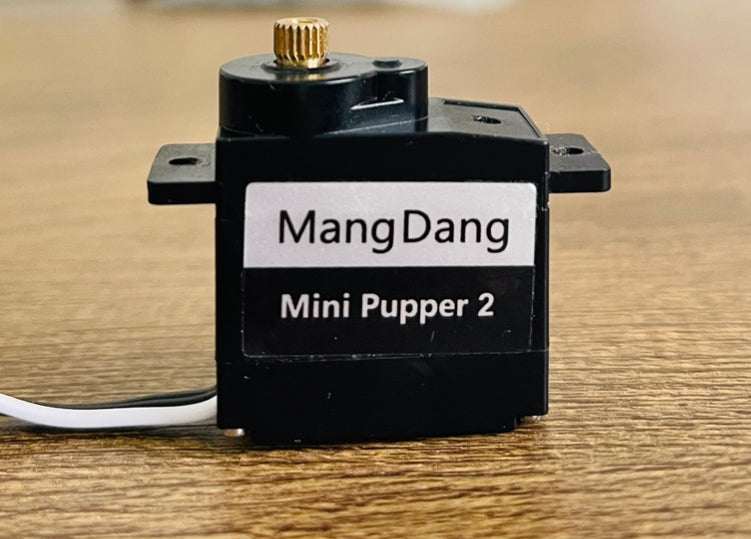

TTL Serial Bus Servo(3.5kg/cm) With Position Feedback

Regular price $9.90 USD
Regular price $9.90 USD Sale price $9.90 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

  • Digital Servo 3.5kg/cm for Robot
  • Gear type: Metal Gear
  • Limit angle: NO limit
  • Bearing: NO Ball bearings
  • Horn gear spline: 25T
  • Horn Type: Plastic, POM

The Digital Servo 3.5kg/cm offers an ABS case and has an operating voltage range of 4.8-7.4 V with a pulse width range of 500~2500 usec.

Specifications

  • Storage Temperature Range: -30 ~ 80 °C
  • Operating Temperature Range: -15 ~ 70 °C
  • Gear type: Metal Gear
  • Limit angle: NO limit
  • Bearing: NO Ball bearings
  • Horn gear spline: 25T
  • Horn Type: Plastic, POM
  • Case: ABS
  • Motor: Core motor
  • Operating Voltage Range: 4.8 - 7.4 V
  • No-load speed: 0.1 sec / 60 degree @ 6 V
  • Running current (at no load): 170 mA @ 6 V
  • Peak stall torque: 3.5kg.cm @ 6 V
  • Rated torque: 1.15 kg.cm @ 6 V
  • Stall current: 1200 mA @ 6 V
  • Command signal: Pulse width modification
  • Amplifier Type: Digital (comparator)
  • Pulse width range: 500~2500 usec
  • Stop position: 1500 μsec
  • Running degree: 180° (when 600~2400 μ sec)
  • Dead band width: 2μsec
  • Rotating direction: CCW (when 1500~2400 μsec)
  • Weight: 12.5 +- 1 g

What's Included

  • 1 x  Digital Servo 3.5kg/cm

Size

  • 23.2 x 12 x 25.5 mm (L x W x H)
  • Connector wire: 200 mm

Supplier Product Code

Mini Pupper 2
